Horizontal Rail Rear, Type AB for Rear I/O Board Guides, 84 HP

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

Aluminum horizontal rails of the type AB, for rear I/O card guides.

Catalog#: 34561-584

Request a Quote Download Catalog (PDF)

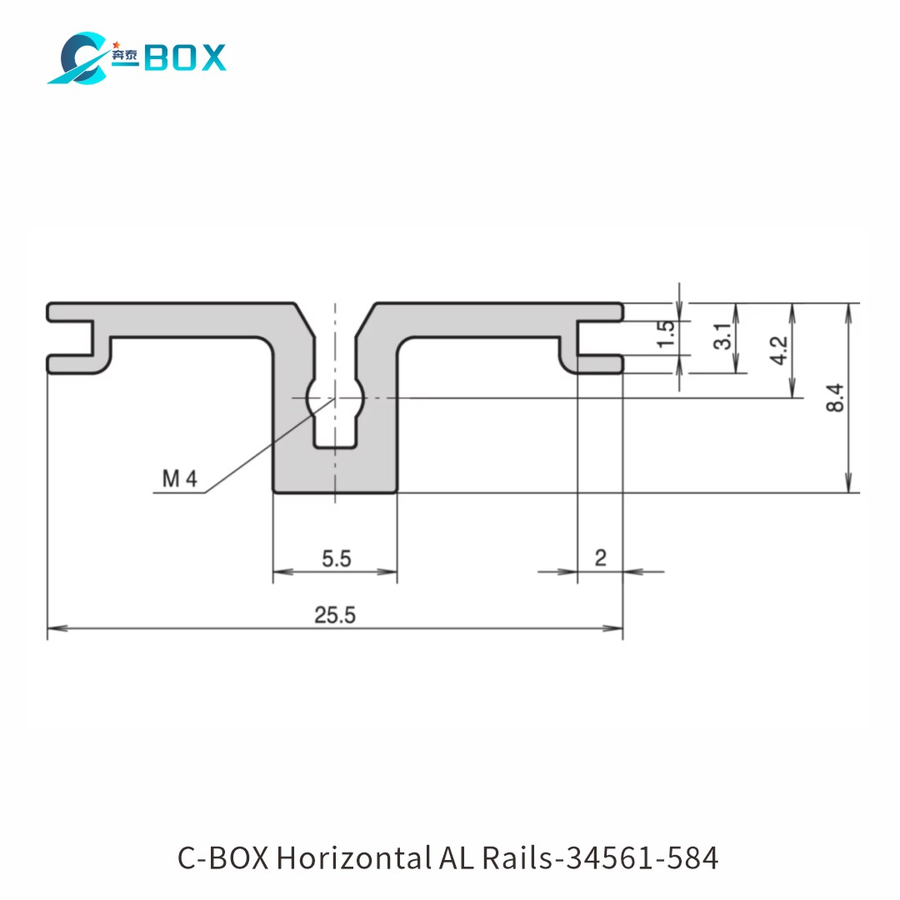

C-BOX Horizontal Rail Rear, Type AB for Rear I/O Board Guides, 84 HP, catalog number 34561-584

Features

Aluminum construction
Anodized finish
84HP rack width
Usable length 431.8mm
Horizontal Rail
Type Type AB

Specifications

Catalog Number	34561-584
Rack Width	84HP
Length	431.8mm
Material	Aluminum
Finish	Anodized
Product Type	Horizontal Rail
Type	Type AB
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO
Works With	Subracks; Cases
Package Quantity	1
Gross Weight	0.068kg

Item(s) Delivered

Horizontal rail, type AB, Al extrusion, surface anodised, conductive contact surfaces, without HP markings × 1
