Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 220 mm, 2 mm Groove Width, Silver

Name: Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 220 mm, 2 mm Groove Width, Silver
Brand: C-BOX
SKU: 34562-882

Extra strong guide rail for heavy plug-in units or PCBs.

Catalog#: 34562-882

Request a Quote Download Catalog (PDF)

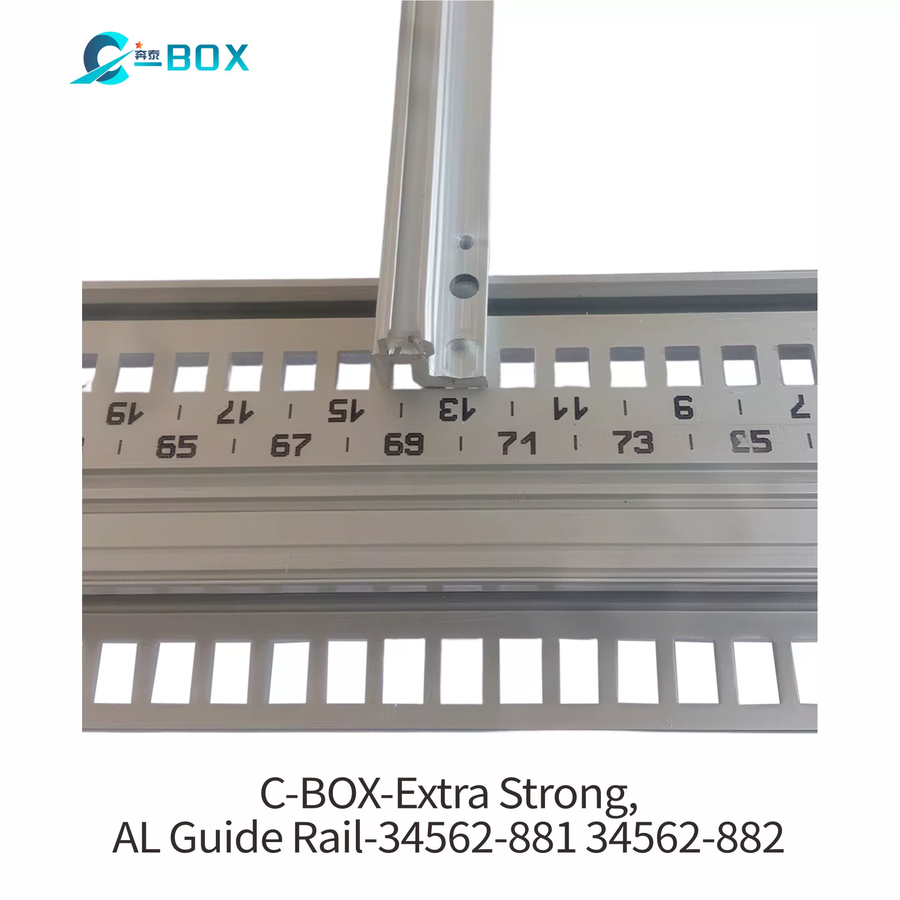

C-BOX Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 220 mm, 2 mm Groove Width, Silver, catalog number 34562-882

Features

Aluminum construction
Anodized finish
Colour: Silver
Guide Rail
Type Heavy Duty
Works with Subracks; Cases; Chassis

Specifications

Catalog Number	34562-882
Material	Aluminum
Finish	Anodized
Color	Silver
Product Type	Guide Rail
Type	Heavy Duty
Product Family	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; Chassis
Package Quantity	1
Board Depth	220mm
Groove Width	2
Net Weight	0.02kg

Related PCB Guide Rails

Catalog#: 24560-255

Guide Rail ESD Clip

Catalog#: 24560-256

Guide Rail With Coding IEEE ESD Clip, Alignment Pin

Catalog#: 24560-351

Guide Rail Standard Type, Groove Width 2 mm, 160 mm, Red, 10 Pieces

Catalog#: 24560-358

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24560-360

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 70 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24568-361

Guide Rail Standard Type, PC, 160 mm, 2 mm Groove Width, Red, 10 Pieces

Catalog#: 34560-900

Guide Rail Multi Piece, Mid-Piece, Aluminum Extrusion, 1000 mm, 2 mm Groove Width, Silver

Catalog#: 34562-881

Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 160 mm, 2 mm Groove Width, Silver

Compatibility with nVent SCHROFF 34562-882

This C-BOX part is compatible with nVent SCHROFF 34562-882 — same interface dimensions, our own tooling, material and finish. It is also a direct replacement for nVent SCHROFF 34562-882: a drop-in alternative for existing 34562-882 installations, no rework required.

Cross-reference: nVent SCHROFF 34562-882, nVent 34562-882, SCHROFF 34562-882 — matching C-BOX catalog number 34562-882. Same hole pattern, same panel cut-out, same thread.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 34562-882 or a compatible custom version? Send an RFQ — engineering response within one business day.
