Guide Rail Accessory Type, Strengthened, Groove Width 2 mm, 280 mm, Red

Name: Guide Rail Accessory Type, Strengthened, Groove Width 2 mm, 280 mm, Red
Brand: C-BOX
SKU: 64560-080

Strengthened guide rail for heavy plug-in units or PCBs.

Catalog#: 64560-080

Request a Quote Download Catalog (PDF)

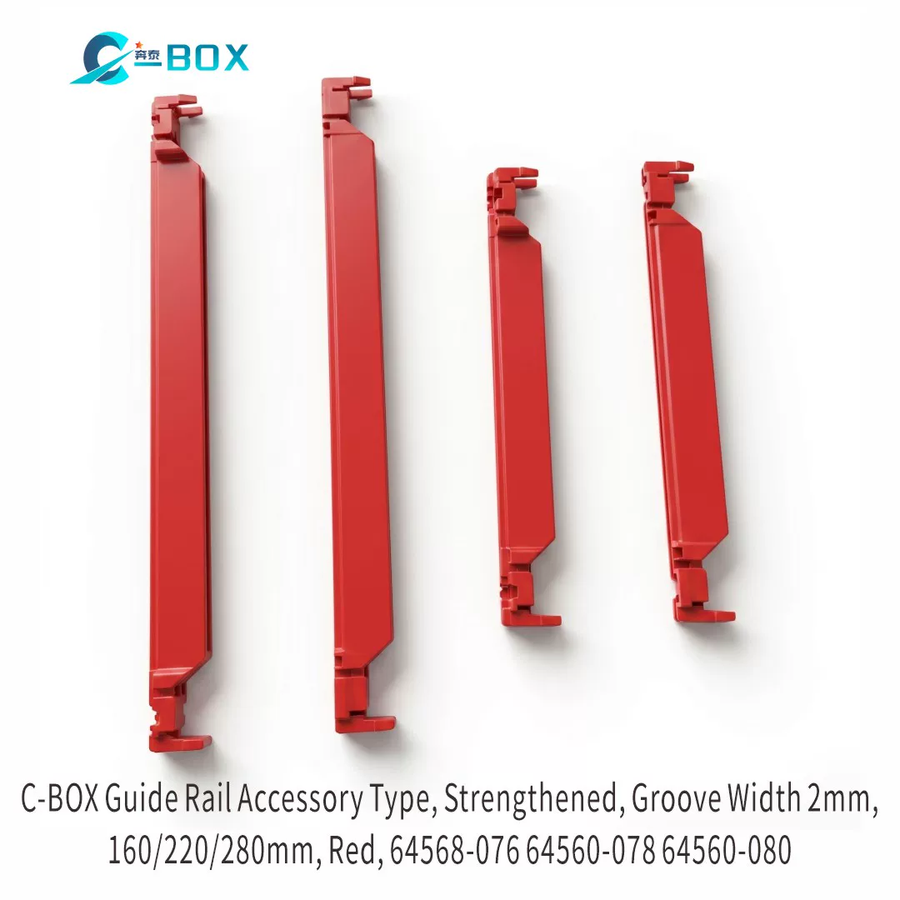

C-BOX Guide Rail Accessory Type, Strengthened, Groove Width 2 mm, 280 mm, Red, catalog number 64560-080

Features

Plastic construction
Colour: Red
Guide Rail
Type Reinforced
Works with Subracks; Cases; Chassis

Specifications

Catalog Number	64560-080
Material	Plastic
Color	Red
Product Type	Guide Rail
Type	Reinforced
Product Family	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; Chassis
Groove Width	2
Net Weight	0.012kg
