Guide Rail With Coding for CompactPCI/ VME64x, 220 mm, 2.5 mm Groove Width, Grey, 10 Pieces

Plastic guide rail with coding for CompactPCI and VME64x systems.

Catalog#: 24561-340

Request a Quote Download Catalog (PDF)

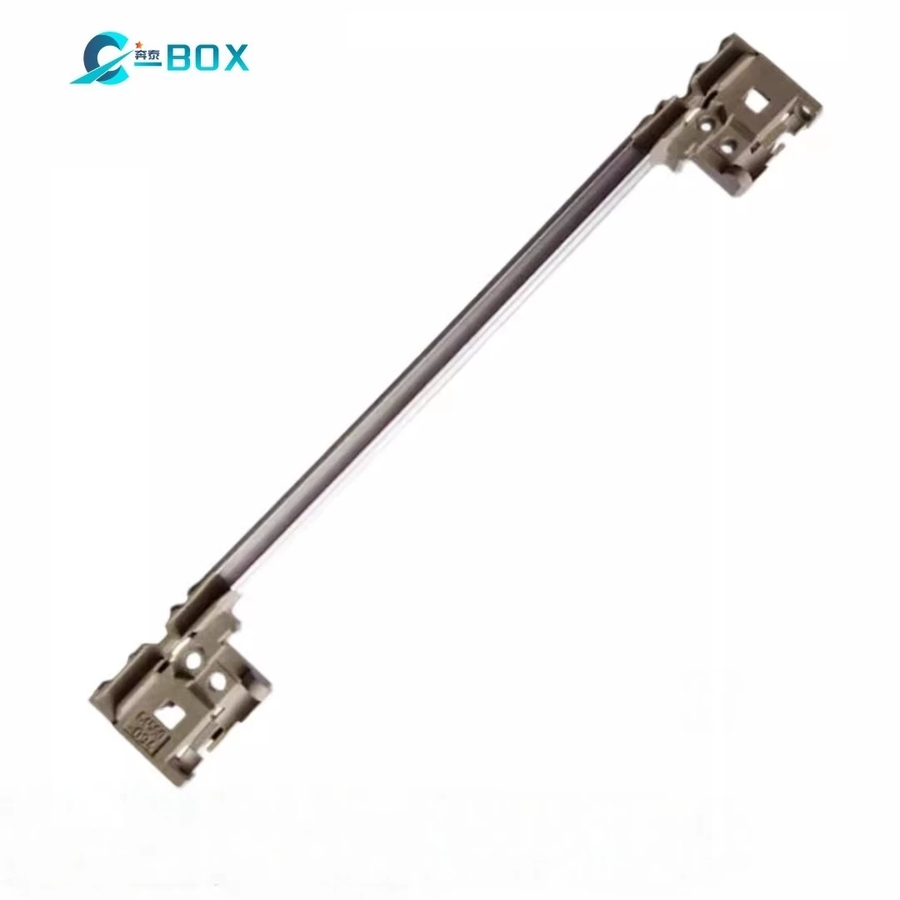

C-BOX Guide Rail With Coding for CompactPCI/ VME64x, 220 mm, 2.5 mm Groove Width, Grey, 10 Pieces, catalog number 24561-340

Features

  • Plastic; Aluminum construction
  • Colour: Grey; Silver
  • Guide Rail
  • Type Coding
  • Works with Subracks; Cases; Chassis

Specifications

Catalog Number24561-340
MaterialPlastic; Aluminum
ColorGrey; Silver
Product TypeGuide Rail
TypeCoding
Product FamilyEuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works WithSubracks; Cases; Chassis
Board Depth220mm
Groove Width2.5

Item(s) Delivered

Related PCB Guide Rails

Catalog#: 24560-255
Guide Rail ESD Clip
Catalog#: 24560-256
Guide Rail With Coding IEEE ESD Clip, Alignment Pin
Catalog#: 24560-351
Guide Rail Standard Type, Groove Width 2 mm, 160 mm, Red, 10 Pieces
Catalog#: 24560-358
Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Grey, 10 Pieces
Catalog#: 24560-360
Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 70 mm, 2 mm Groove Width, Grey, 10 Pieces
Catalog#: 24568-361
Guide Rail Standard Type, PC, 160 mm, 2 mm Groove Width, Red, 10 Pieces
Catalog#: 34560-900
Guide Rail Multi Piece, Mid-Piece, Aluminum Extrusion, 1000 mm, 2 mm Groove Width, Silver
Catalog#: 34562-881
Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 160 mm, 2 mm Groove Width, Silver

Compatibility with nVent SCHROFF 24561-340

This C-BOX part is compatible with nVent SCHROFF 24561-340 — same interface dimensions, our own tooling, material and finish. It is also a direct replacement for nVent SCHROFF 24561-340: a drop-in alternative for existing 24561-340 installations, no rework required.

Cross-reference: nVent SCHROFF 24561-340, nVent 24561-340, SCHROFF 24561-340 — matching C-BOX catalog number 24561-340. Same hole pattern, same panel cut-out, same thread.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.
