Horizontal Rail, Rear, Type H-MZ, Heavy, with Z-rail, 84 HP

Name: Subracks & 19″ Chassis
Brand: C-BOX

Rear horizontal rail for 19″ subracks. Heavy-duty type H-MZ with with Z-rail. Aluminium extrusion, anodised, with conductive contact surface and printed HP markings.

Catalog#: 34560-984

Request a Quote Download Catalog (PDF)

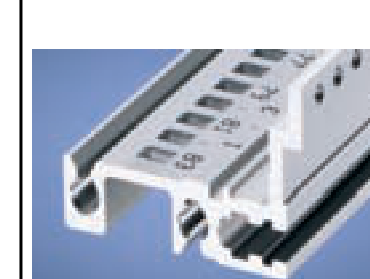

C-BOX Horizontal Rail, Rear, Type H-MZ, Heavy, with Z-rail, 84 HP, catalog number 34560-984

Features

Aluminium extrusion, anodised finish, conductive contact surface
Heavy-duty type H-MZ with with Z-rail
Printed HP markings from 28 HP for fast board alignment
Usable length 431.80 mm at 84 HP
Integrated Z-rail for direct fixing of connectors to EN 60603-2 (DIN 41612)
Pairs with front rail type H-KD / H-LD
Loading capacity > 7.5 kg

Specifications

Catalog Number	34560-984
Product Type	Horizontal Rail
Position	Rear
Type	H-MZ (Heavy duty, with Z-rail)
Rack Width	84 HP
Usable Length	431.80 mm
Material	Aluminium extrusion
Finish	Anodised, conductive contact surface
Markings	Printed HP scale
Complies With	IEC 60297-3-100/-101
Loading Capacity	> 7.5 kg
Connector Mounting	Z-rail, EN 60603-2 (DIN 41612)
MOQ	100 pcs
