Home  ›  Products  ›  Subrack Accessories  ›  34561-384

acc · Threaded Inserts & Strip Nuts

Threaded Insert (Strip Nut), Tapped M2.5, for 84 HP Rail

Steel zinc-plated threaded insert pressed into the slotted horizontal rail — required for fixing the front panel to the rail. Use with 12.3 mm collar screws (21101-101).

Catalog#: 34561-384

Request a Quote Download Catalog (PDF)

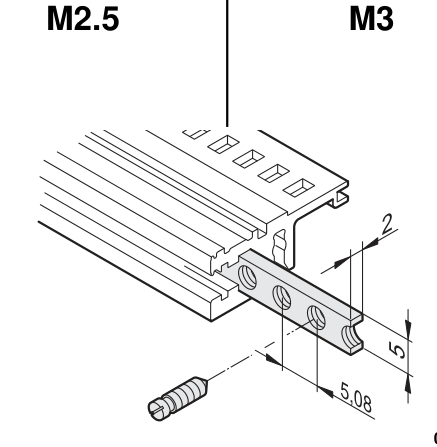

C-BOX Threaded Insert (Strip Nut), Tapped M2.5, for 84 HP Rail, catalog number 34561-384

Features

  • Tapped M2.5 threads
  • Steel, zinc-plated
  • For 84 HP rails — rail usable length 431.30 mm
  • Use with collar panhead screw 21101-101 (M2.5 × 12.3)
  • Companion M3 version available: 34561-484

Specifications

Catalog Number34561-384
Product TypeThreaded Insert (Strip Nut)
ThreadM2.5
MaterialSteel, zinc-plated
For Rail84 HP horizontal rails
Mating Screw21101-101 (M2.5 × 12.3)
MOQ1000 pcs
