Home › Products › Subrack Accessories › 64568-008

Subrack Accessories · PCB Guide Rails

Guide Rail End Piece, Accessory Type, PC, Groove Width 2 mm, Red

End pieces for individual multi-piece guide rails with plastic or Aluminum extrusion mid-piece.

Catalog#: 64568-008

Request a Quote Download Catalog (PDF)

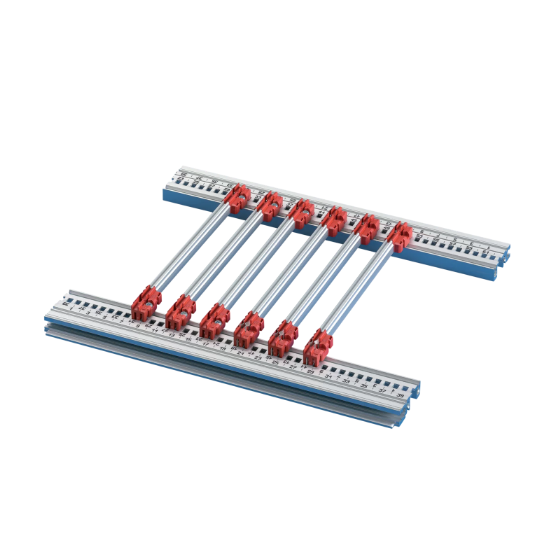

C-BOX Guide Rail End Piece, Accessory Type, PC, Groove Width 2 mm, Red, catalog number 64568-008

Features

Fiber-Reinforced Plastic construction
Rail End Piece
Type Accessory
Works with Subracks; Cases; Chassis
Complies with EN 45545-2
Standard pack quantity: 1

Specifications

Catalog Number	64568-008
Material	Fiber-Reinforced Plastic
Product Type	Rail End Piece
Type	Accessory
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; Chassis
Complies With	EN 45545-2
Package Quantity	1
Package Unit	Pair
Groove Width	2

Item(s) Delivered

Front End piece, accessory type, PC, UL 94 V-0, plastic, 2 mm, red × 1
Rear End piece, accessory type, PC, UL 94 V-0, plastic, 2 mm, red × 1

Related PCB Guide Rails

Catalog#: 24560-255

Guide Rail ESD Clip

Catalog#: 24560-256

Guide Rail With Coding IEEE ESD Clip, Alignment Pin

Catalog#: 24560-351

Guide Rail Standard Type, Groove Width 2 mm, 160 mm, Red, 10 Pieces

Catalog#: 24560-358

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24560-360

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 70 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24568-361

Guide Rail Standard Type, PC, 160 mm, 2 mm Groove Width, Red, 10 Pieces

Catalog#: 34560-900

Guide Rail Multi Piece, Mid-Piece, Aluminum Extrusion, 1000 mm, 2 mm Groove Width, Silver

Catalog#: 34562-881

Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 160 mm, 2 mm Groove Width, Silver

Compatibility

This part is compatible with nVent SCHROFF 64568-008 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 64568-008 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 64568-008 or a compatible custom version? Send an RFQ — engineering response within one business day.

Request a Quote
