Subrack Accessories · PCB Guide Rails

Guide Rail With Coding for CompactPCI/ VME64x, Offset 0.1", PC, 160 mm, 2 mm Groove Width

With Coding type, Offset plastic guide rail for plug-in units or PCBs.

Catalog#: 64568-071

Request a Quote Download Catalog (PDF)

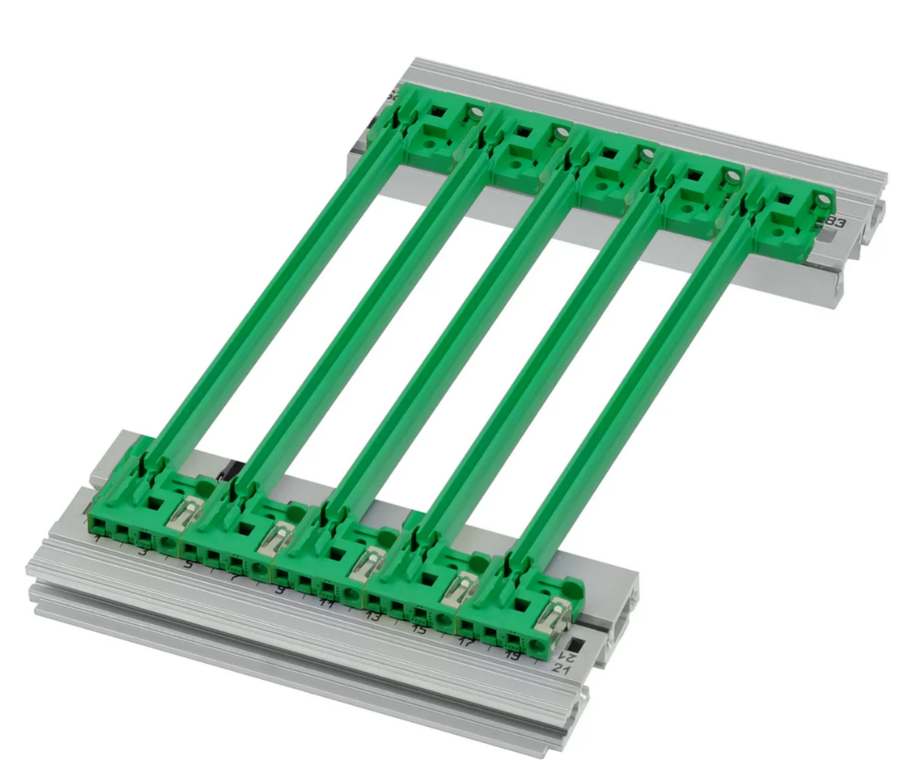

C-BOX Guide Rail With Coding for CompactPCI/ VME64x, Offset 0.1", PC, 160 mm, 2 mm Groove Width, catalog number 64568-071

Features

Fiber-Reinforced Plastic construction
Colour: Green
Guide Rail
Type Coding, Offset
Works with Subracks; Cases; 19" Chassis; Systems
Complies with EN 45545-2

Specifications

Catalog Number	64568-071
Material	Fiber-Reinforced Plastic
Color	Green
Product Type	Guide Rail
Type	Coding, Offset
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; 19" Chassis; Systems
Complies With	EN 45545-2
Package Quantity	1
Gross Weight	0.008kg
Board Depth	160mm
Groove Width	2

Item(s) Delivered

Guide rail, PC, UL 94 V-0, improved fire safety properties, EN 45545-2 compliant with HL3 × 1
